WHAT IS A SMART SOLDERING MICROSCOPE?
October 05, 2026
Magnification up to 300 times...

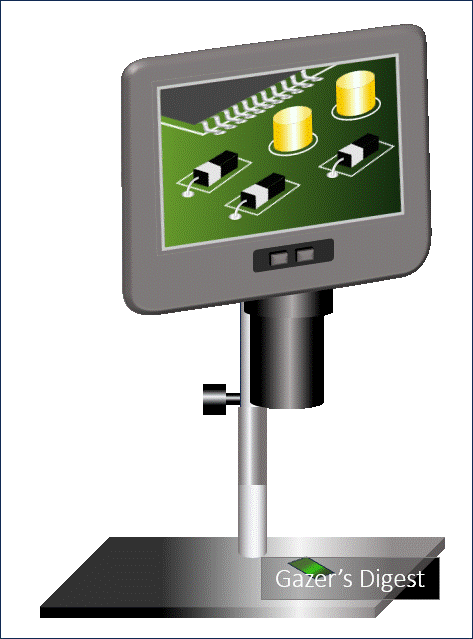

A digital microscope can be used for inspection, measuring, soldering, and repair of PCBs in electronic devices with small components. It is portable. Some digital microscopes can be connected to an HD monitor or a computer.

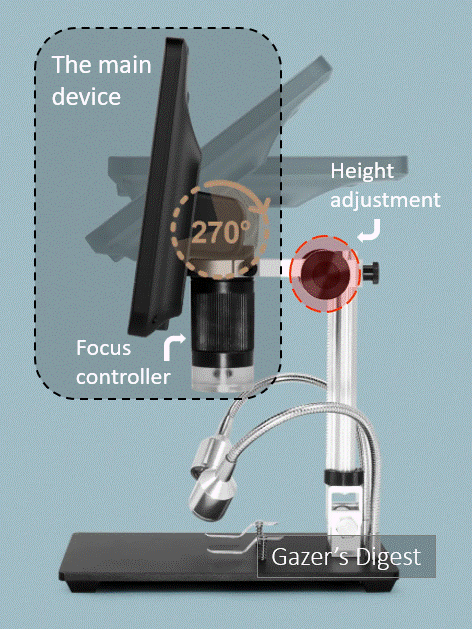

The screen and the digital camera set together form the microscope (also called the main device). It comes with a 7-inch to 10-inch LCD screen. The main device allows users to have a larger field of view. The knobs on the optical bracket can be used to raise or lower the optical stack to the desired height. The lower the height, the greater the magnification.
If the microscope does not have a built-in battery, make sure the microscope is always powered on when in use.
Put the object under the microscope, adjust the focus wheel and its height to get the best image on the screen. Do not let the bottom of the stack contact your object.
- Magnification up to 300 times (HDMI monitor 27-inch)
- Digital magnification up to 3x beyond the optical magnification
- The measurement interface (measure the length, radius, angle, area, etc.)
- Power source: USB 5V 2A DC
You can explore a wide range of smart soldering microscopes on Gazer’s Digest.
